Gearbox Filter Media

BiaoDian, a reliable factory in China, can offer high quality Gearbox Filter Media used inside transmission filters, where oil keeps circulating during operation.

As the system runs, internal components generate fine wear particles. These particles stay in the oil and move through the system if they are not filtered out.

In actual use, this material sits in the filter structure and holds those particles while the oil continues to flow through.

At the same time, it needs to stay stable under temperature and pressure changes, without affecting normal oil movement.

Material Structure & Function

This material is built on a PET fiber structure and is used under continuous oil flow conditions.

Instead of relying on a single dense layer, the structure is arranged so that oil passes through gradually.

Larger particles are held earlier in the flow, while smaller ones are retained further inside.

In actual use, the material allows oil to keep moving without noticeable resistance, while wear particles are captured within the structure.

Over time, it keeps its shape and does not collapse under normal gearbox operating conditions.

Specifications

Technical Parameters

How It Works

When gearbox oil flows through this Gearbox Filter Media, filtration happens step by step.

At first, larger wear particles are stopped by the outer structure.

As oil continues to flow, smaller particles are gradually retained within the inner layers.

Instead of acting only on the surface, the structure works through the full depth of the material, which helps maintain stable performance over time.

During operation, oil flow remains smooth, and the structure stays stable under temperature and pressure changes.

Applications

This Gearbox Filter Media is mainly found in transmission systems that operate continuously over time.

In real use, it appears in:

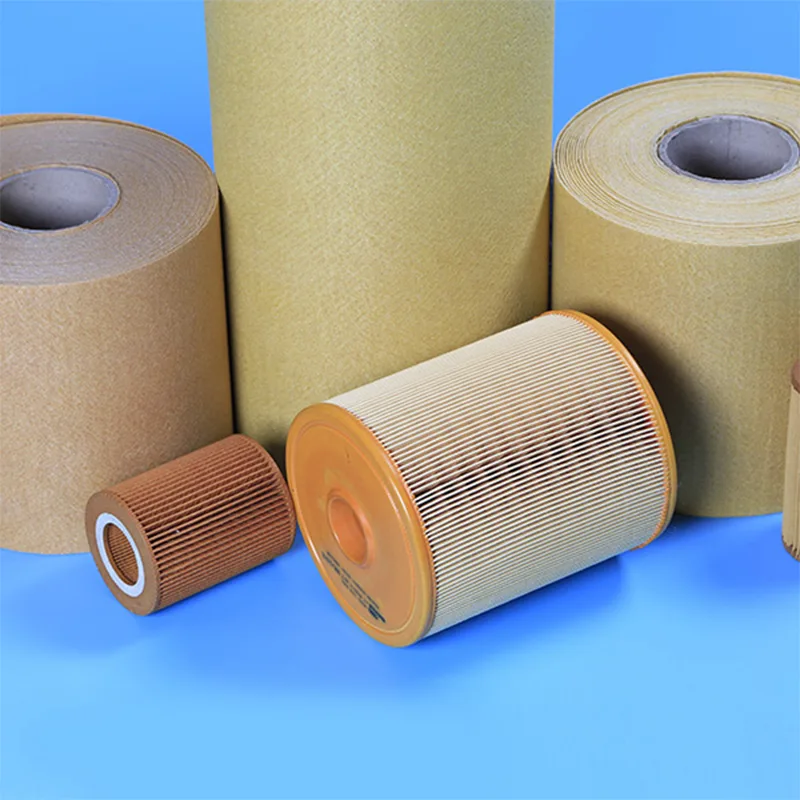

• gearbox filter elements

• automatic transmission filters

• passenger and commercial vehicle transmission systems

These systems typically run under continuous load, where stable filtration becomes more important over time.

Typical Working Conditions & Material Performance

In actual operation, gearbox systems run under steady but long-duration conditions.

This material maintains stable performance across common scenarios.

Continuous oil circulation

Gearbox oil circulates continuously during operation.

Under this condition, the material allows smooth flow while gradually retaining wear particles.

Ongoing particle generation

As internal components move, fine particles are continuously generated.

In use, the structure helps capture these particles instead of letting them circulate within the system.

Temperature and pressure variation

Gearbox systems experience changes in temperature and pressure.

The material maintains its structure under these conditions, supporting consistent performance.

Performance during processing

During filter production, the material goes through pleating or forming processes.

In practice, it runs stably on standard production lines and maintains its structure during processing.

Production & Supply

Customers usually focus on how the material behaves in production.

Common points include:

• smooth running during pleating

• structural stability

• consistency between batches

From our side:

• structure remains consistent

• rolls are prepared for direct use

• each batch is checked before shipment

Once confirmed, the same specification is typically used for long-term production.

Packaging & Shipping

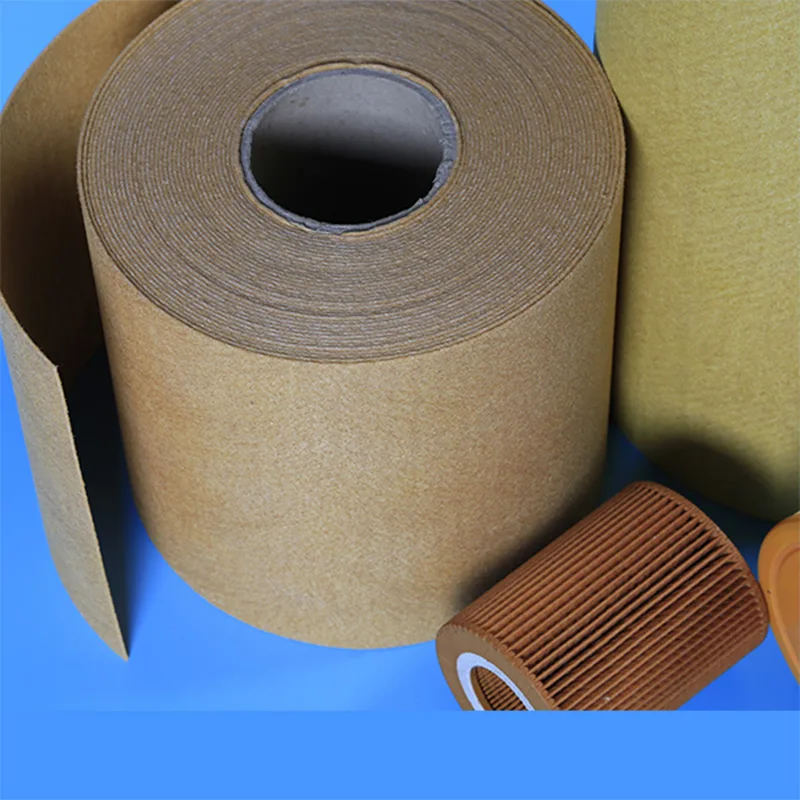

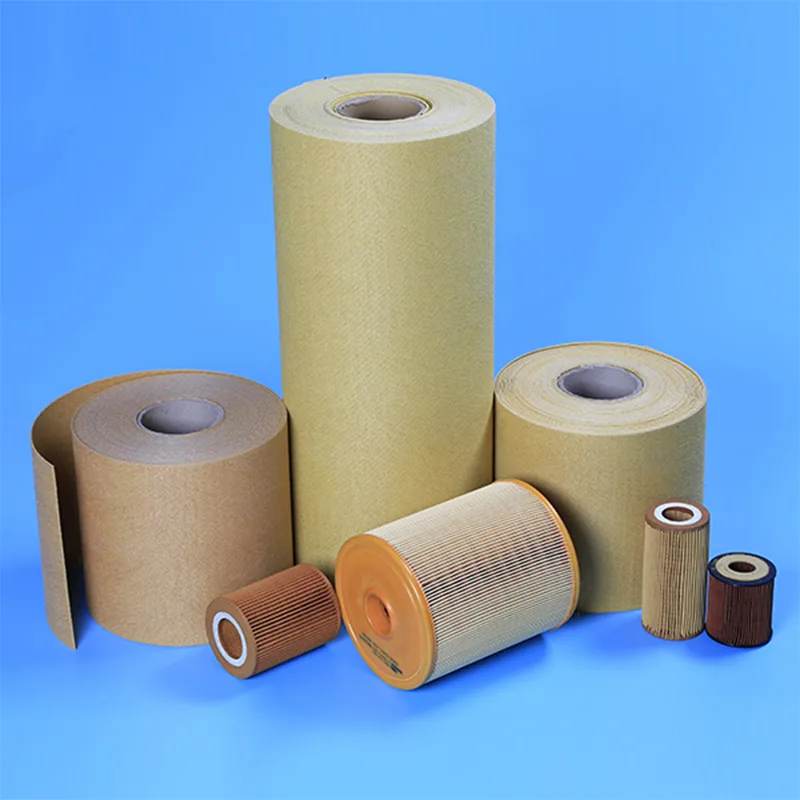

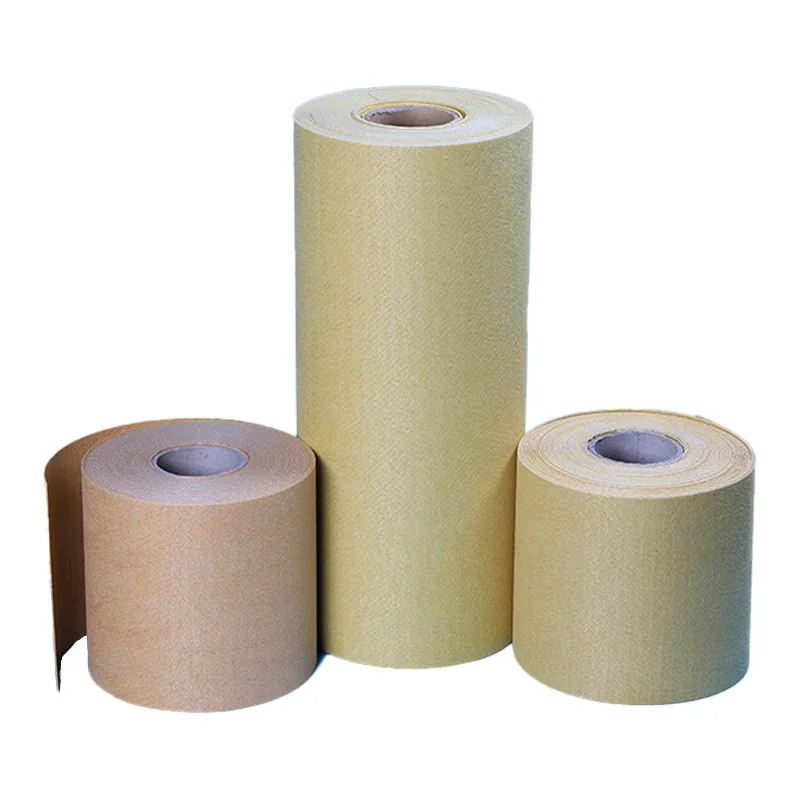

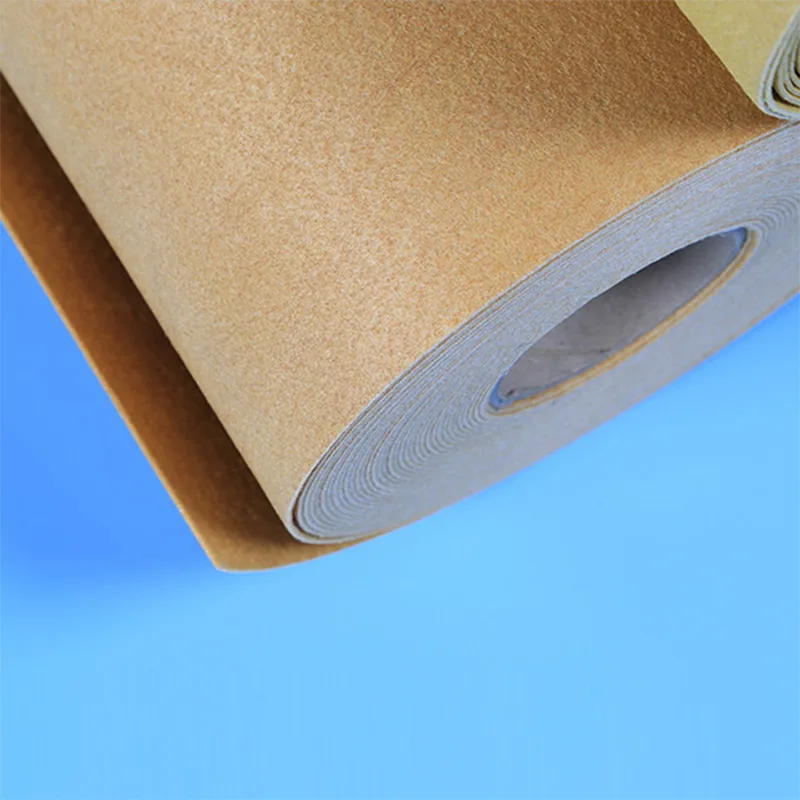

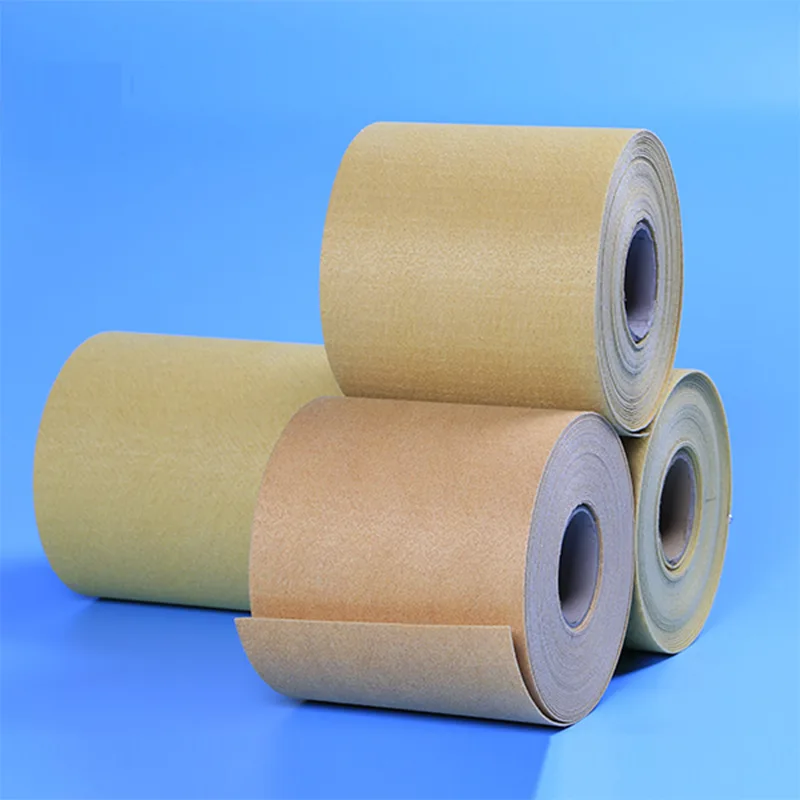

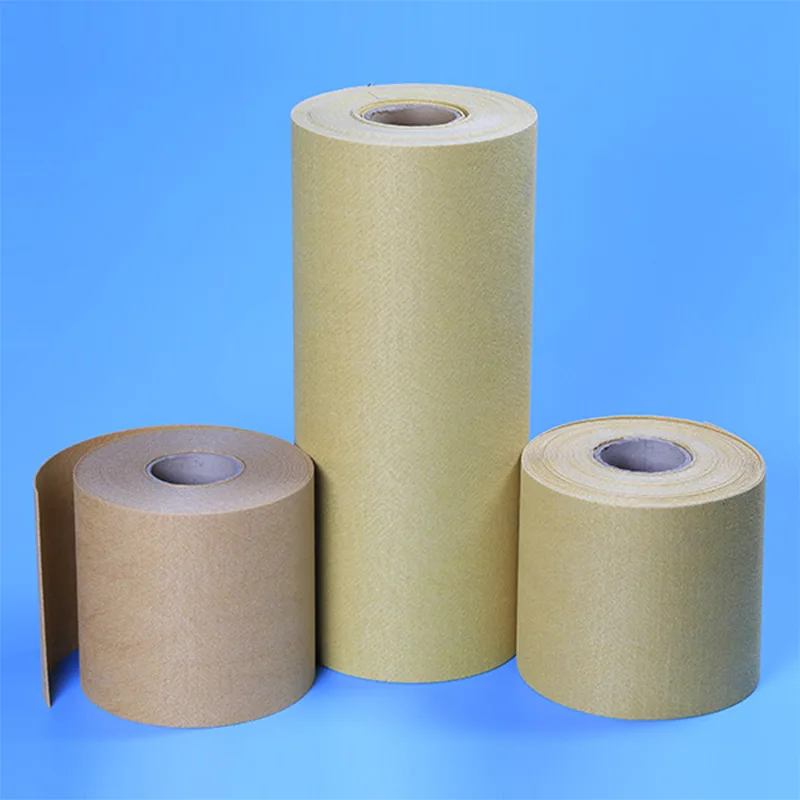

The Gearbox Filter Media is supplied in roll form.

Each roll is packed to keep its shape during transport and avoid issues like compression or moisture exposure.

Shipping is arranged based on order size and timing. Most orders move by sea, with other options used when needed.

Sample & Support

In most cases, samples are tested before confirmation.

Typical checks include:

• performance during production

• compatibility with filter structure

• stability during operation

Samples are available for evaluation.

Once confirmed, the same specification is usually used for ongoing supply.

FAQ

Q1: What is the Gearbox Filter Media?

PET fiber structure.

Q2: What does it handle?

Wear particles in gearbox oil.

Q3: Where is it used?

Transmission filters and gearbox systems.

Q4: What do customers focus on?

Production stability and consistent performance.
